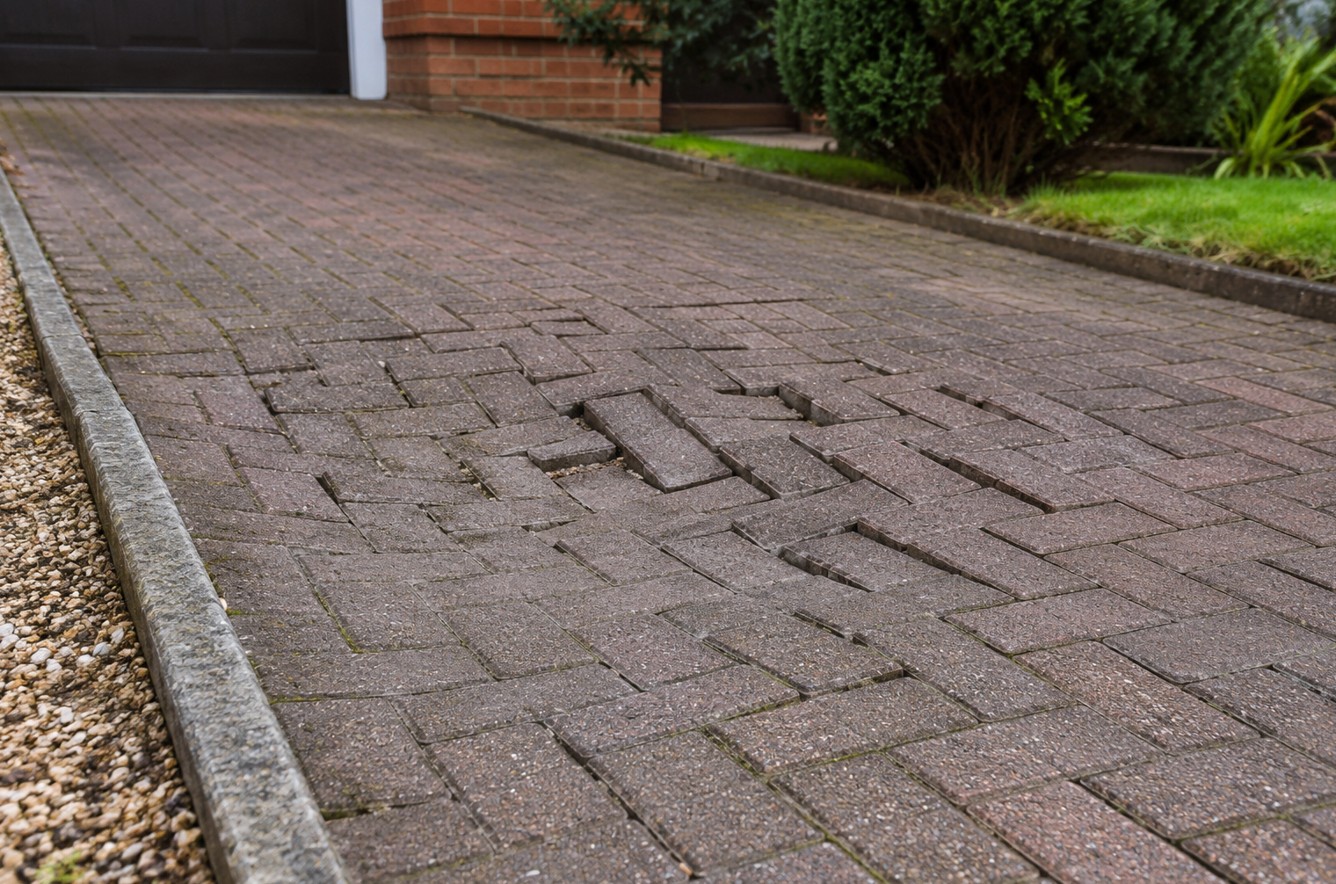

We’ve lost count of how many sinking driveways we’ve fixed. Most were less than five years old. The extremely tough weather conditions of the South West really affect the driveways. Besides, if you make any mistake with the groundwork, your driveway will sink or crack or even turn into a pond in a very short time. Hence, here are the five biggest driveway sinking South West problems that we keep coming across continuously. And exactly how we prevent every single one.
Key Takeaways:
- Sub-base is everything – The sub-base is of utmost importance, 150mm of compacted MOT Type 1 is enough to prevent any kind of sinking permanently. Anything less than that becomes a risk.
- Clay soil needs extra depth – Depth support is necessary for clay soil. Our standard practise is to dig 200mm on clay. No exceptions.
- Drainage isn’t optional – Without the correct gradient and drainage channel, the flow of water will erode the base of your driveway.
- Edge restraints hold it together – Properly fixing the edges is essential, your driveway will lose shape and sink at the edges if you don’t install the restraints.
- Permeable materials save you hassle – They also save you from planning permission Issues.
Mistake #1: Skimping on the Sub-Base
Your base is crucial. We’ve come across driveways that had only 50mm of sand on top of bare soil. We can’t call that a foundation.
If you know clay soil well, then you also know it expands when it gets wet and contracts when it dries. Unless you fix your driveway with a strong, compacted layer of stone, these variations will eventually be reflected on the surface as cracks and hollows.
Had a job in Saltash last year. The block paving had sunk six inches in places. A closer inspection revealed that the sand layer under the paving was directly laid over mud. Looked great for eighteen months but just long enough for the installer to get away with it.
Our sub-base process:
- Dig 200mm deep on clay (150mm minimum otherwise)
- Lay geotextile membrane to stop clay from mixing with the stone
- Fill with MOT Type 1 limestone – sharp and angular so it locks together
- Compact in three layers with a vibrating plate
We give the same advice to everyone: a cheap sub-base is a waste of your money in the long run because it’ll have to be removed eventually anyway.
Mistake #2: Ignoring Drainage
Water washes the bedding material away. Voids form underneath. Then you park your car on top and it caves in.
We see driveways that look fine in summer but turn into ponds every time it rains. The water sits there, seeps down, and carries the sand away. Within two years, you’ve got tyre ruts you could lose a welly in.
Our drainage fixes:
| Problem | What We Do |
| Water pooling on the surface | Set a proper fall to shed water away from the house |
| No drainage channels | Install ACO linear channels at key points |
| Water running onto the pavement | Use permeable materials or direct water to a border |
If puddles are still there hours after rain stops, something’s wrong. And it’ll only get worse.
Mistake #3: Forgetting Edge Restraints
Without them, your blocks spread outward under vehicle weight. And when they spread, they sink in the middle.
We install concrete edging around the entire perimeter. Our standard is to place concrete edges around the entire area. The concrete is mixed, and after that, the edge is pinned into the sub-base. This is how the driveway gets one solid edge.
Mistake #4: Using the Wrong Material for the Ground
Not every driveway material suits South West clay. Some of them simply just don’t last here.
We usually recommend block paving for driveways in the South West. It just handles clay soils very well. Once you’ve got a solid sub-base and good edge restraints, block paving flexes enough to handle the movement in the ground. If any block sinks or shifts over time, you can just pick it up and relay it correctly, unlike a solid surface, which cracks and costs way more to fix.
Gravel’s another excellent choice. It drains fast, stays free of puddles and works well on clay soils. Plus, it’s budget-friendly and easy to maintain. The only requirement is to have a sturdy edging so the gravel stays contained.
So it comes down to what suits you best: the polished look of block paving or the drainage and ease of gravel. Both work well on South West clay if you get the base right. You choose what you like and we’ll make sure the ground’s prepared properly.
Mistake #5: Ignoring Planning Permission Rules
This one’s not about sinking – it’s about saving you from ripping the whole thing out. Not if you use permeable materials. Gravel, permeable blocks, resin-bound – you’re fine.
But impermeable surfacing over 5 square metres needs permission. Unless you can direct rainwater to a proper drainage system or a soakaway.
We always check this before starting. The last thing anyone wants is a letter from the council telling you to rip it up. We’ve seen it happen. We make sure it doesn’t.
Frequently Asked Questions
- How much does a new driveway cost in the South West?
It depends on ground conditions and access. Give us a call and we’ll provide you a fair quote.
- Can you lay a driveway on Devon clay?
Yeah. Dig 200mm deep, use a membrane, compact properly. We’ve done it hundreds of times.
- How long does a driveway take?
5–10 working days, depending on size and material. Weather can delay us.
- Why has my block paving sunk around the manhole?
Poor backfill. The ground wasn’t compacted properly around the services.
- What’s the best driveway material for the South West?
Resin-bound or permeable block paving. Both these materials can absorb the rainwater, meet to planning regulations and will last for 15 to 20 years.
Conclusion
We’re here to save you from expensive headaches. If you skimp on the sub-base, neglect drainage, forget the edge restraints, choose the wrong material, or disregard the planning rules you will end up paying twice. The first time for the inferior job and the second time for us to do it correctly.
We don’t do cheap. We do right. Driveways that handle the Devon clay, don’t get wet in the rain and stay level for decades.
Ready to sort your driveway properly? Get in touch with Essa for a free site survey. First time, every time.
